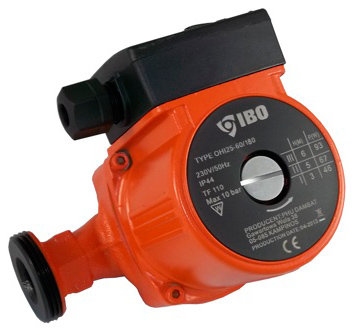

Circulating pump for heating IBO OHI 25/60-180
Three-speed motors of high-quality cast iron circulators IBO for heating make it possible to set the parameters that the pump needs for the most suitable installation requirements (power and pressure).
The main benefits of the pumps of the model series OHI:
- Saving electricity and boiler fuels
- Standard dimensions
- Ease of use and installation
- Long trouble-free operation
- Materials and parts are resistant to aggressive aquatic environments and do not require additional maintenance costs
- The structure allows the control unit to be separated from the pump in the event of malfunction or maintenance
- Quiet operation even at higher speeds thanks to the bearing material used
Product parameters
- Material: cast iron, top layer of anticorrosive enamel
- Bearing material: glass ceramics
- Power supply: 220-230V / 50Hz
- Rated current: 0.41 A
- Performance based on speed (1/2/3): 46W / 63W / 93W
- Maximum flow rate based on speed (1/2/3): 22L / min / 38L / min / 55L / min
- Media temperature: 2-110 ° C
- Maximum pipe pressure: 10 bar
- Protection: IP44
- Displacement: 6 m
- Mounting length: 180 mm
- Pipe: 1 "/ DN25
- Connecting thread: 1 1/2 "(6/4")
