Radiator heating distributor, 4 way
Availability:
Item No.:
Original price:
Our discount:
Price without VAT:
In stock
H31004
76,80€
20 %
51,20€

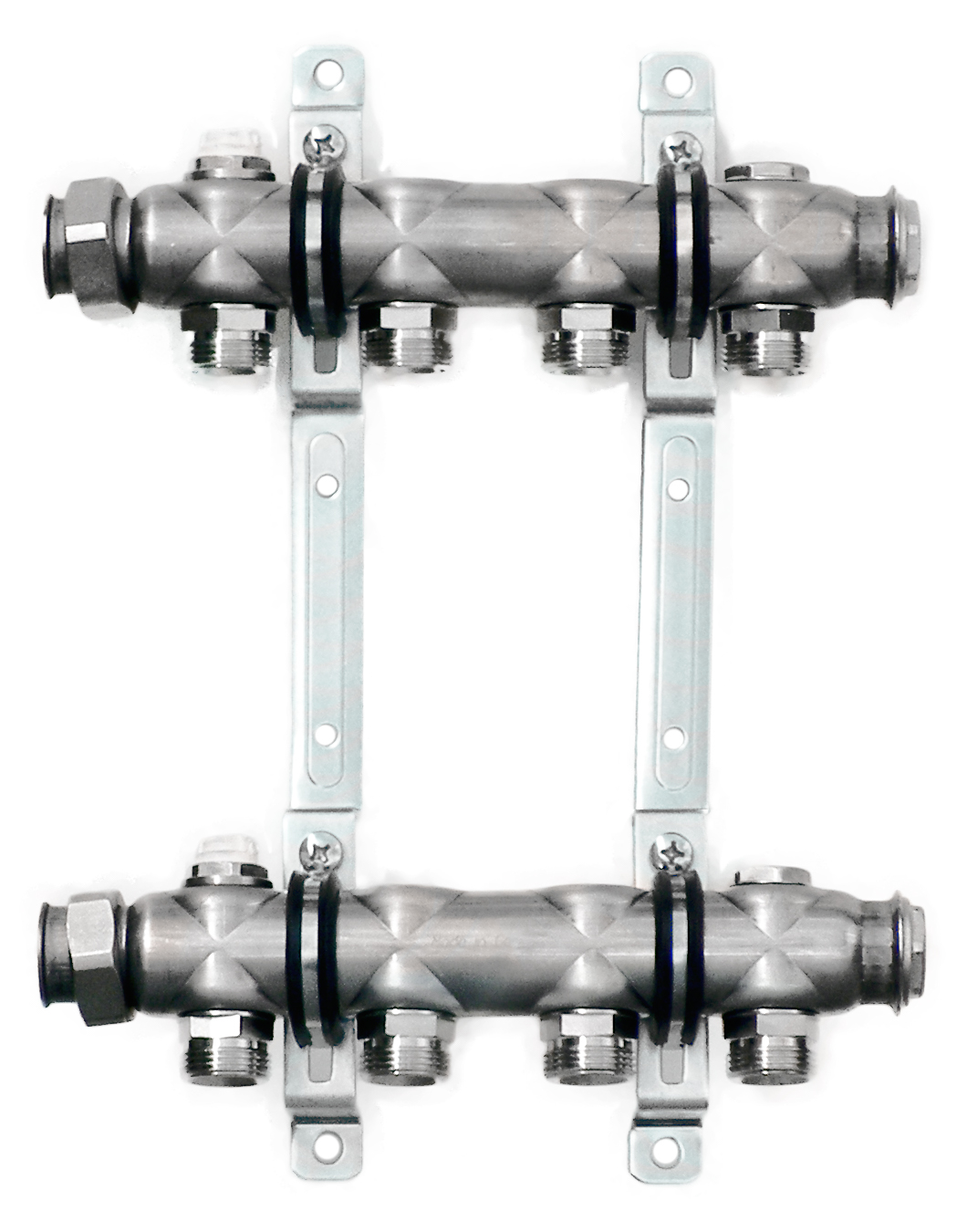

Manifolds are made of high quality stainless steel according to the German standard DIN EN 1264-4: 2009-11. The distributors can be used for all kinds of plastic pipes, including multilayer pipes and copper. The manifold consists of a stainless steel body, an automatic venting valve, a rotary draining valve, and two nickel-plated bearings. Pipe connection is a 3/4 " eurocone. Country of origin: Germany
Product parameters
| Designation | heating and cooling systems |
|---|---|
| Permissible liquid temperatures | - 10 °C až 70 °C |
| Max. working pressure | 4 - 6 bar |
| Max. test pressure | 10 bar |
| Flow | 1,12 m3/h |
| Measurement range | 0-5 l/min |
| Material | brass, heat resistant plastics, stainless steel 1.4301 |
| Sealing | EPDM |
| Thread | DIN ISO EN 228-1 |
| Accuracy of measurement | +/- 10 % |
| Liquids | water for heating, cooling water, aqueous mixtures with standard anti-corrosion freeze fluids |
| Max. permissible operating temperature | + 80 °C |
| Max. permissible operating pressure | 6 bar |
| Armature | Press-Messing Ms 58, nickel-plated |
| Flat sealing | WS 3825 |
| Sound insulation | DIN 4109 |
| Recommended pipe | PEX-AL-PEX 16 x 2 |
| Recommended fittings | ALPEX 16 x 2 ALU-EK connection adapter |
| Recommended cabinets | Manifold cabinets |
| Circuit connection | 3/4" EK, Euroconus |
| Input and output connection | 1" |
| Country of origin | Germany |
