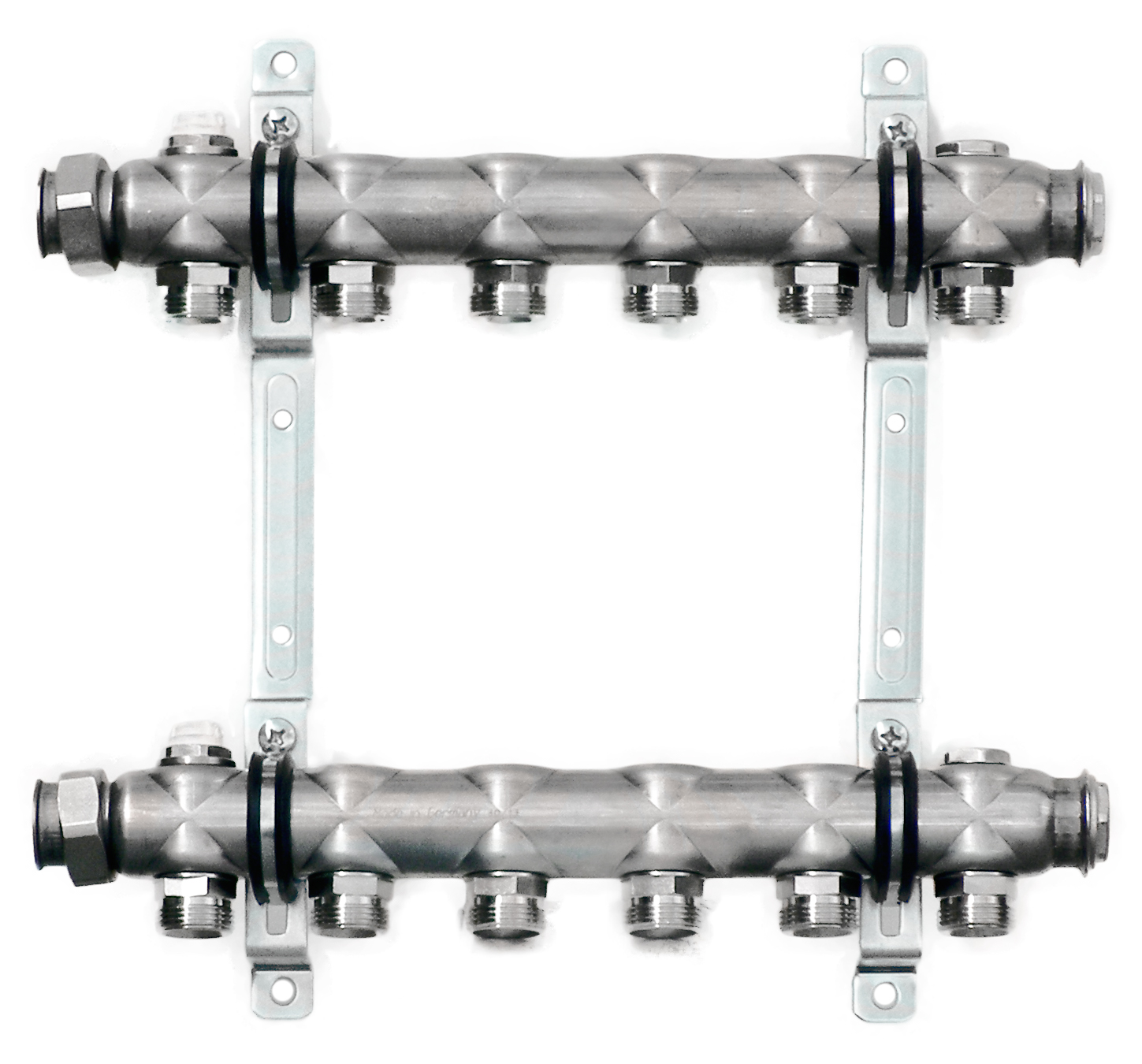

Radiator heating distributor, 6 way







Manifolds are made of high quality stainless steel according to the German standard DIN EN 1264-4: 2009-11. The distributors can be used for all kinds of plastic pipes, including multilayer pipes and copper. The manifold consists of a stainless steel body, an automatic venting valve, a rotary draining valve, and two nickel-plated bearings. Pipe connection is a 3/4 " eurocone. Country of origin: Germany



Product parameters

Designation	heating and cooling systems
Permissible liquid temperatures	- 10 °C až 70 °C
Max. working pressure	4 - 6 bar
Max. test pressure	10 bar
Flow	1,12 m3/h
Measurement range	0-5 l/min
Material	brass, heat resistant plastics, stainless steel 1.4301
Sealing	EPDM
Thread	DIN ISO EN 228-1
Accuracy of measurement	+/- 10 %
Liquids	water for heating, cooling water, aqueous mixtures with standard anti-corrosion freeze fluids
Max. permissible operating temperature	+ 80 °C
Max. permissible operating pressure	6 bar
Armature	Press-Messing Ms 58, nickel-plated
Flat sealing	WS 3825
Sound insulation	DIN 4109
Number of circuits	šesť
Recommended pipe	PEX-AL-PEX 16 x 2
Recommended fittings	ALPEX 16 x 2 ALU-EK connection adapter
Recommended cabinets	Manifold cabinets
Circuit connection	3/4" EK, Euroconus
Input and output connection	1"
Country of origin	Germany
