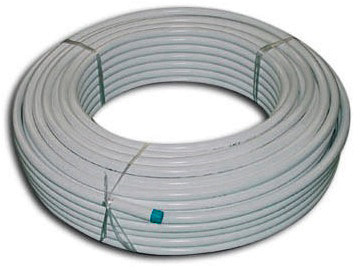

Ivar Alpex Therm XS 16 x 2

Availability:

Item No.:

Price without VAT:

In stock

77016700

1,20€/m

buy now

• The Fränkische pipeline is used for the construction of district heating systems and underfloor heating.
• Ivar Alpex Therm XS 16 x 2 plastic pipe for heating, water and underfloor heating with an oxygen barrier.
• Material: polyethylene, aluminum layer, crosslinked polyethylene, gray color.
• Minimum order is 25 m, followed by the addition of 5 meters.




  Product parameters

  Pipe composition	PEX/AL/PEX
  Dimensions	16 x 2,0 mm
  Internal diameter	11,9 mm
  Aluminum layer	0,20
  Couplings	Screwed fittings
  Coefficient of thermal conductivity	0,45 W/m.K
  Remote expansion coefficient	0,026 mm/m.K
  Max. Permissible operating temperature	short term 95 °C, 70 °C non-stop service
  Max. Permissible operating pressure	10 bar
  Bending radius without tools	min. 5 x Outer diameter (v mm)
  Bending radius with bending spring	2 x Outer diameter (v mm)
  Coefficient of relative roughness	0,007 mm/m
  Water volume	0,113 l/m
  NormS	DIN EN ISO 21003
  Color	white
  Material class	B2, DIN 4102
  Country of origin	EU
