The UHP 300 systemboard is used as thermal insulation and underfloor heating system. The board can be used in residential buildings, public buildings, offices. The boards are designed for a tight fit of the heating pipes without the need for additional fastening systems. The joining of the boards is done by locks which allow joints without spaces, thus preventing the creation of thermal bridges.
System boards used in accordance with the manufacturer's instructions, building constructions should be in accordance with current binding building law regulations. The surface should be flat and dry. Between the system board and the wall, use dilation. Do not expose plates to direct contact with chemicals that affect polystyrene.

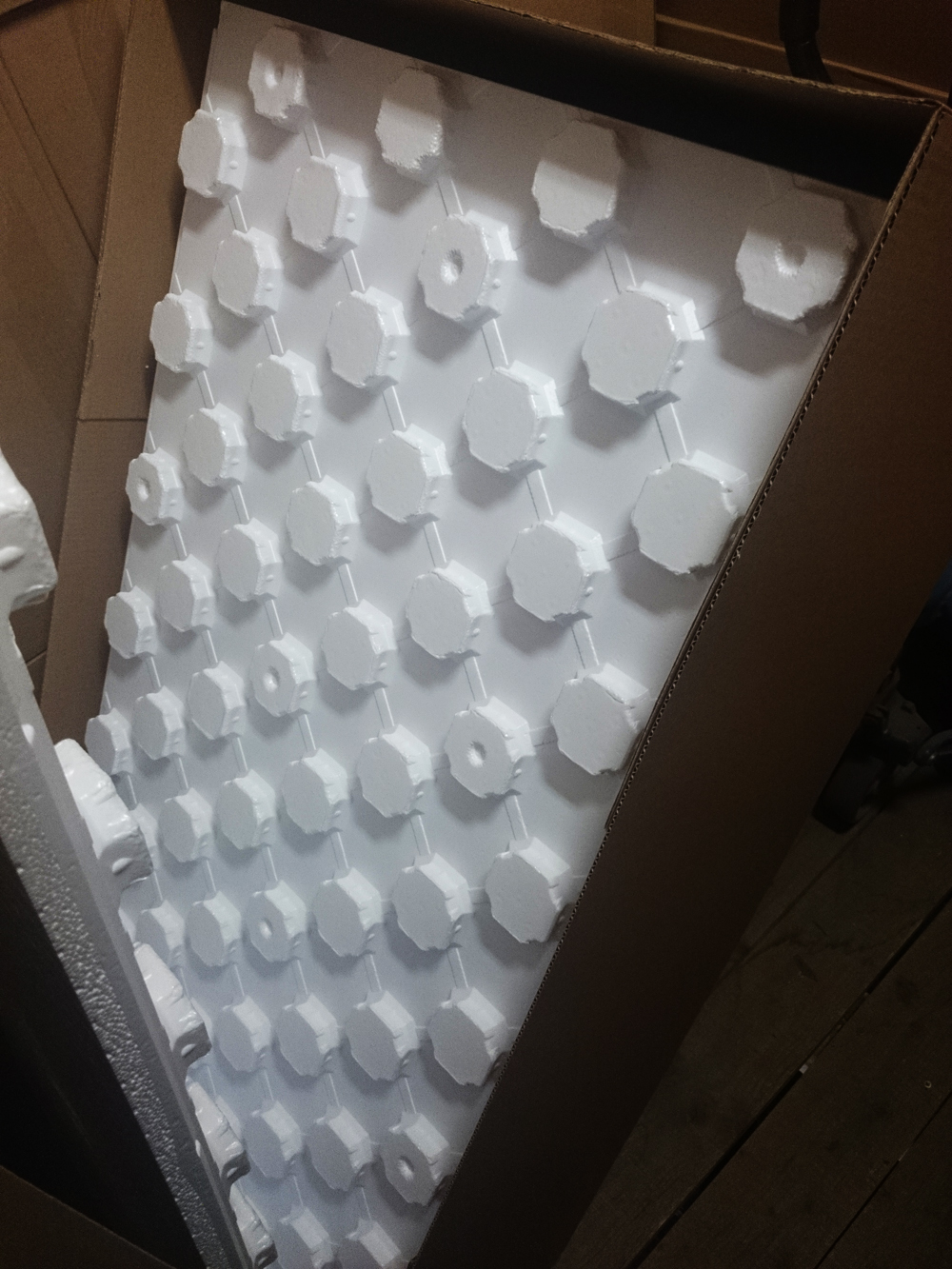

The boards are supplied in the manufacturer's original packaging. Each package contains a label containing: product description, date and production code, quality certificate, manufacturer's address, technical parameters. The boards should be stored in a place providing protection against mechanical damage and varying weather conditions, especially direct sunlight and humidity. Road vehicles must be suitable for the transport of goods which could be easily damaged, with no protruding sharp edges, no damaged part of the load, with a waterproof roof covering.
Board size: 0,72 m2
Pipe diameter: 14 - 18 mm
Bending strength: ≥ 200 kPa
Total height: 44 mm
Order is only possible by packages
Package contains 7,2 m2 - 10 boards.
Product parameters
• UHP 35 board is made of EPS 150 polystyrene according to STN EN 13163
• board is coated with compressed foil

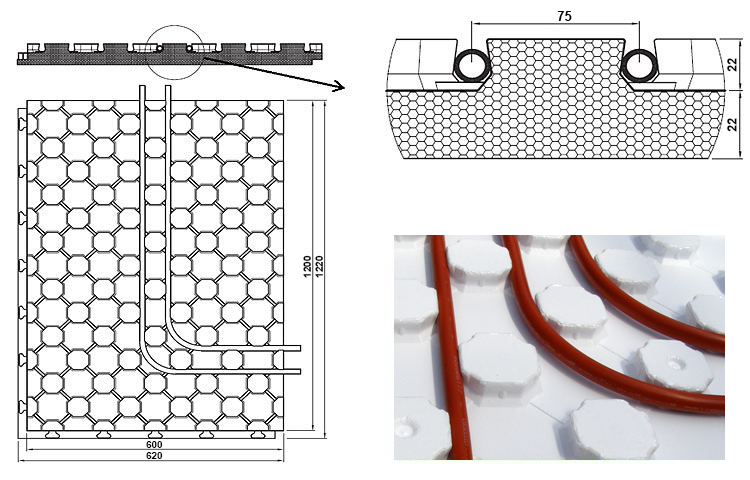

• dimensions: 1200 x 600 mm
• with locks: 1220 x 620 mm
• board height: 44 mm
• lock height: 20,5 mm
• foil thickness: 0,2 mm
• pipe bending: 50 mm
• pipe diameter: 14-18 mm
• declared heat conductivity coefficient λD: 0,35 W/mK
• thermal resistance RD (m2K/W): 0,85
• bending strength: ≥ 200 kPa
