Underfloor heating board UHP54

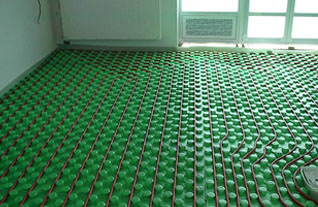

Polystyrene isolation board for underfloor heating systems designed for heavy-duty use, industry and family houses.

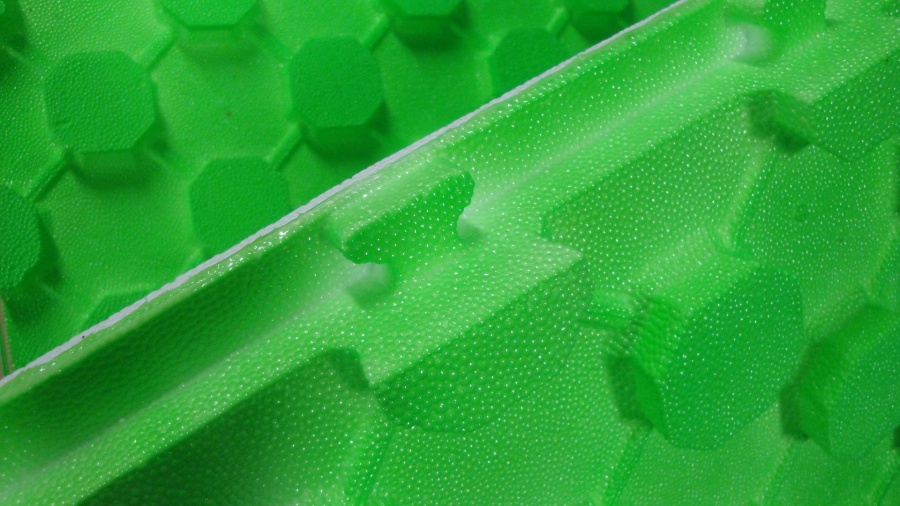

Each board has a lock which quarantees that each side of the board is overlapped by another one, thereby it is secured that conctrete won't penetrate below the polystyrene.



Isolations are made of extruded polystyrene. This applies for UHP 55 - UHP 51.

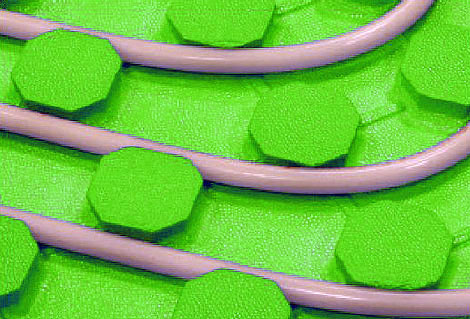

There are octagonal studs with overhangs on the top of the board that allow quick and easy installation of any pipe with a thickness of 16 - 20 mm (pipe stays in place and does not pop out).



5mm high small ribs between studs secure that the pipe is completely wrapped in concrete sealing compound (even from bottom). This ensures perfect heat exchange to a heating board around whole pipeline.

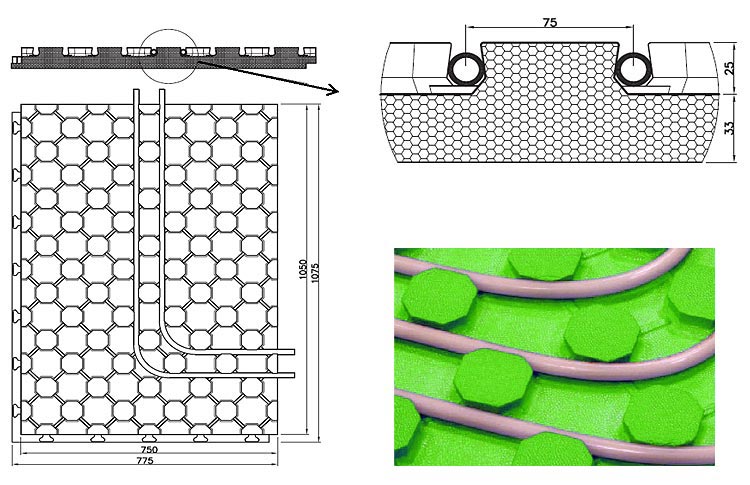

Board size: 0,7875m2 Pipe diameter: 16- 20 mm Bending strength:  50 kPa Total height: 58 mm

Order is only possible by packages Package contains 10,24 m2  - 13 boards. Package measurements: 1100 x 600 x 800 mm
